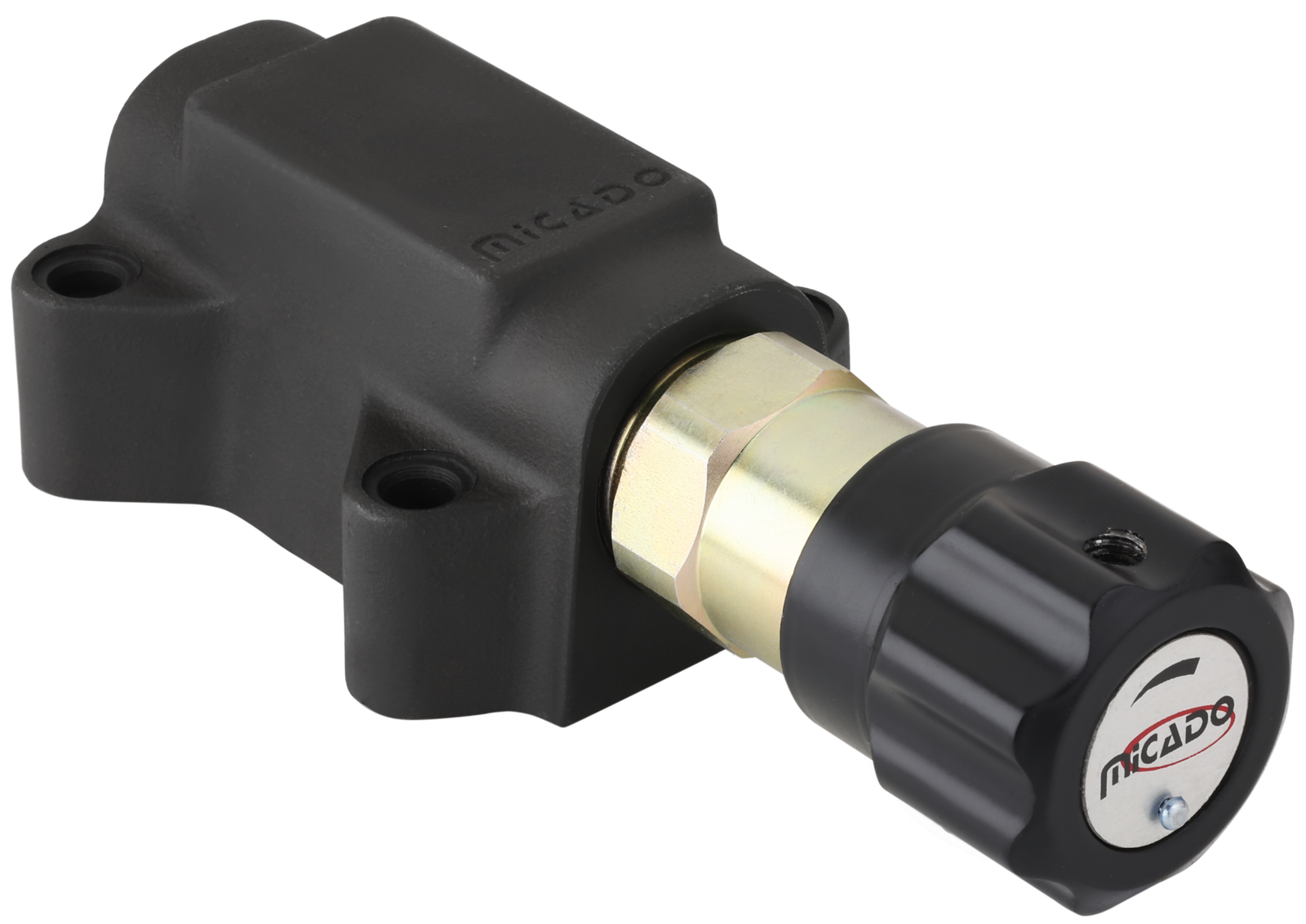

DPRH-10S

DPRH-10S

Specification	Details
Product Name	DPRH-10S
Product Type	Direct Acting Pressure Relief Valve
Valve Design	Guided Poppet Type
Operation	Direct Acting
Valve Size	10
Pressure Adjustment	Hand Knob (H Type)
Mounting Type	Subplate Mount (S Type)
Maximum Operating Pressure	Up to 400 Bar
Pressure Setting Range	25, 50, 100, 200, 315 & 400 Bar (Model Dependent)
Flow Direction	P → T
Rated Flow Capacity	Up to 80 L/min
Hydraulic Medium	Mineral Hydraulic Oil
Viscosity Range	10–380 cSt
Operating Temperature	-20°C to +70°C
Applications	Hydraulic Power Packs, Industrial Machinery, Marine Systems, Construction Equipment, Mobile Hydraulic Equipment
Features	Guided Poppet Design, Stable & Low-Noise Operation, Fast Pressure Response, Easy Pressure Adjustment, Heavy-Duty Construction, Long Service Life

Description

The DPRH-10S is a high-performance direct-acting pressure relief valve with a subplate mounting configuration, designed to protect hydraulic systems from excessive pressure by automatically diverting excess fluid to the tank. It features a guided poppet design with a cushioning arrangement that ensures stable operation, low noise, and fast pressure response. Its compact construction and reliable pressure control make it ideal for hydraulic power packs, industrial machinery, marine systems, construction equipment, and mobile hydraulic applications.
