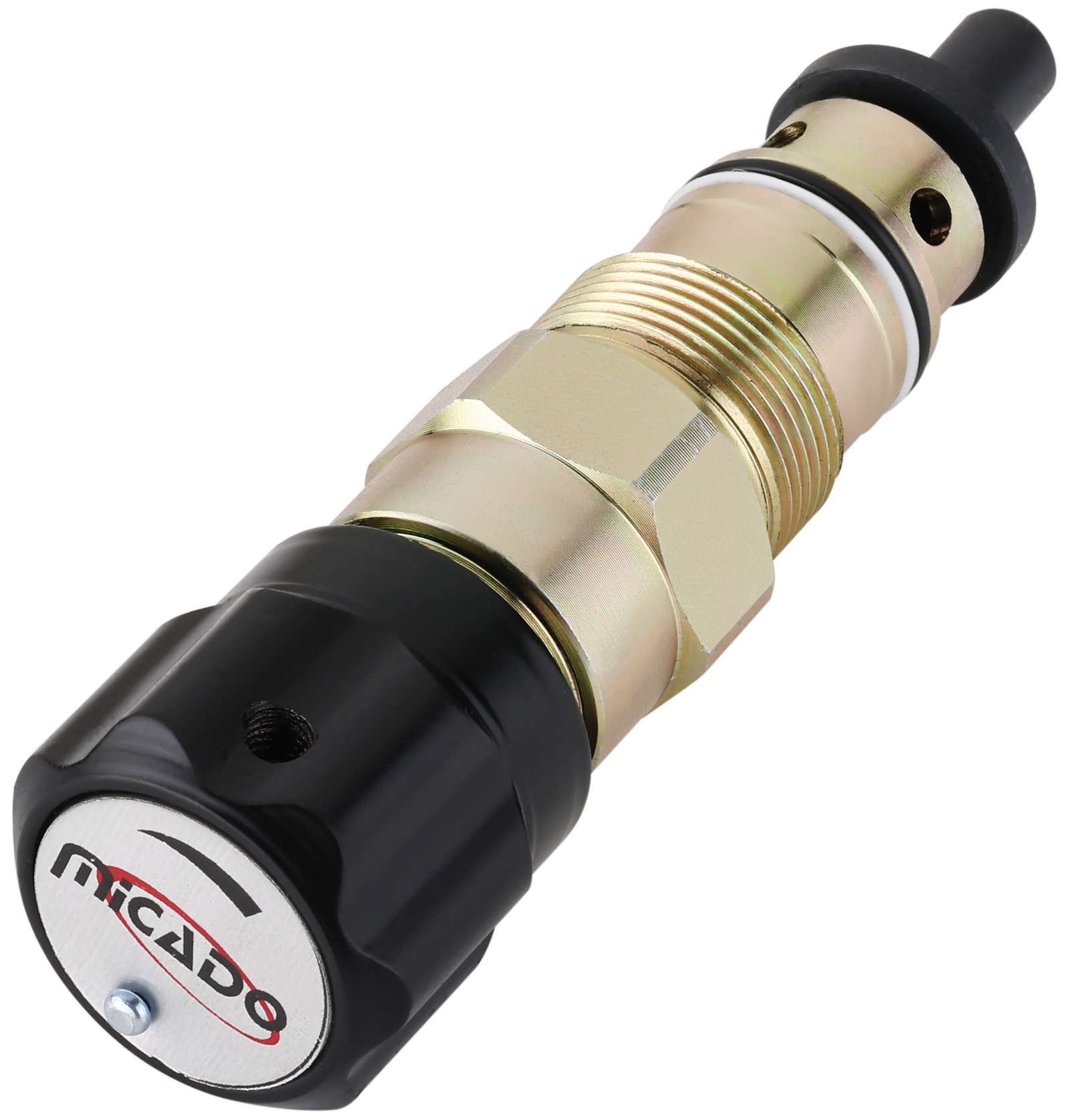

DPRH-06K

DPRH-06K

Specification	Details
Product Name	DPRH-06K
Product Type	Direct Acting Pressure Relief Valve
Valve Design	Guided Poppet Type
Operation	Direct Acting
Valve Size	06
Pressure Adjustment	Set Screw with Lock Nut (K Type)
Mounting Type	Cartridge Type
Maximum Operating Pressure	Up to 700 Bar
Pressure Setting Range	25, 50, 100, 200, 315, 400 & 700 Bar (Model Dependent)
Maximum Flow Capacity	Up to 30 L/min
Flow Direction	P → T
Hydraulic Medium	Mineral Hydraulic Oil
Viscosity Range	10–380 cSt
Operating Temperature	-20°C to +70°C
Applications	Hydraulic Power Packs, Industrial Machinery, Machine Tools, Marine Systems, Construction Equipment, Mobile Hydraulic Equipment
Features	Fixed Pressure Adjustment, Fast Pressure Response, Guided Poppet Design, Low-Noise Operation, Heavy-Duty Construction, Compact Design, Long Service Life

Description

The DPRH-06K is a compact and reliable direct-acting pressure relief valve designed to safeguard hydraulic systems by limiting maximum operating pressure. It features a guided poppet design with hydraulic cushioning for fast pressure response, stable operation, and low noise. The “K” version is equipped with a set screw and lock nut for secure pressure adjustment, making it ideal for applications where a fixed pressure setting is required. Its compact size and high-pressure capability make it suitable for hydraulic power packs, industrial machinery, construction equipment, marine systems, and mobile hydraulic applications.
