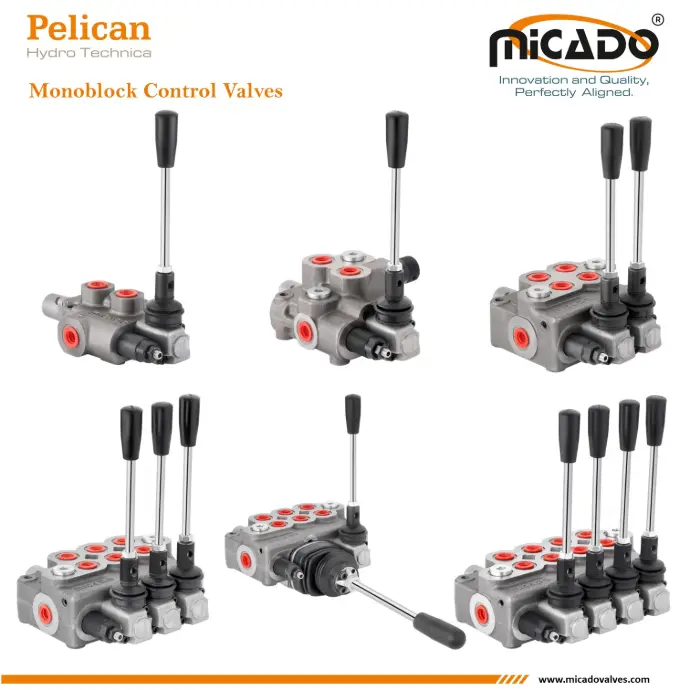

Monoblock Control Valves - PH45
Description:
- PH45 Hydraulic Mobile Control valve is a high-performance Monoblock valve designed for precise and reliable hydraulic system control.
- Its compact Monoblock construction ensures durability and easy installation while minimizing system complexity. Available With Spring Centered & Detent.
Technical Features:
- Nominal Flow Rating : 45 L/min.
- Max. Pressure bar : 315 bar (4600 Psi)
- Available in: 1 to 7 Levers with
- Spring Centered & Detent Type.
- Control Options: Available with joystick
- operation for enhanced precision
Applications:
- Agricultural machinery (Tractors, Harvesters)
- Construction equipment (Loaders, Excavators)
- Material handling systems
- Industrial Hydraulic Machinery

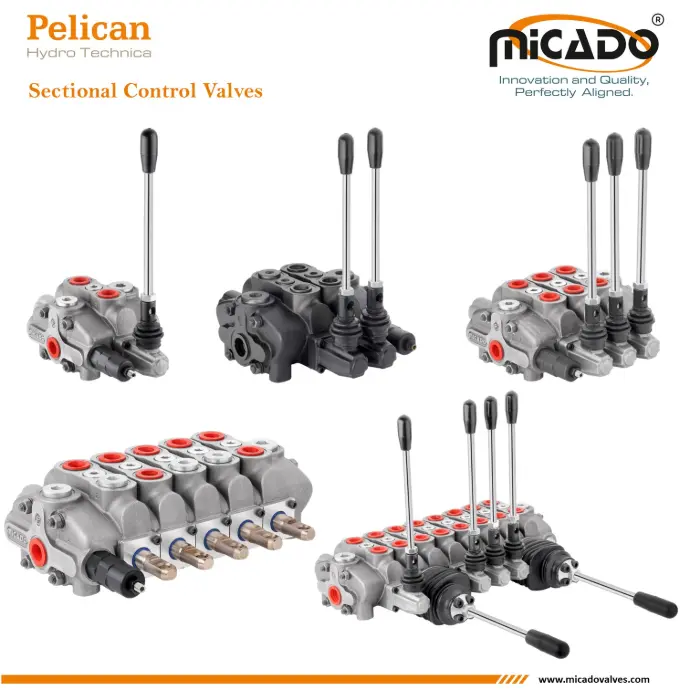

Sectional Control Valves - PH80
Description:
- The PH80 sectional hydraulic mobile control valve is a versatile and robust solution for managing hydraulic functions in high-demand systems. this sectional valve is highly configurable,
- Its sectional design allows flexibility to customize the valve to meet specific system requirements.
Technical Features:
- Nominal Flow Rating : 45 L/min.
- Max. Pressure bar : 315 bar (4600 Psi)
- Available in: 1 to 7 Levers with
- Spring Centered & Detent Type.
- Control Options: Available with joystick
- operation for enhanced precision
Applications:
- Agricultural machinery (Tractors, Harvesters)
- Construction equipment (Loaders, Excavators)
- Material handling systems
- Industrial Hydraulic Machinery

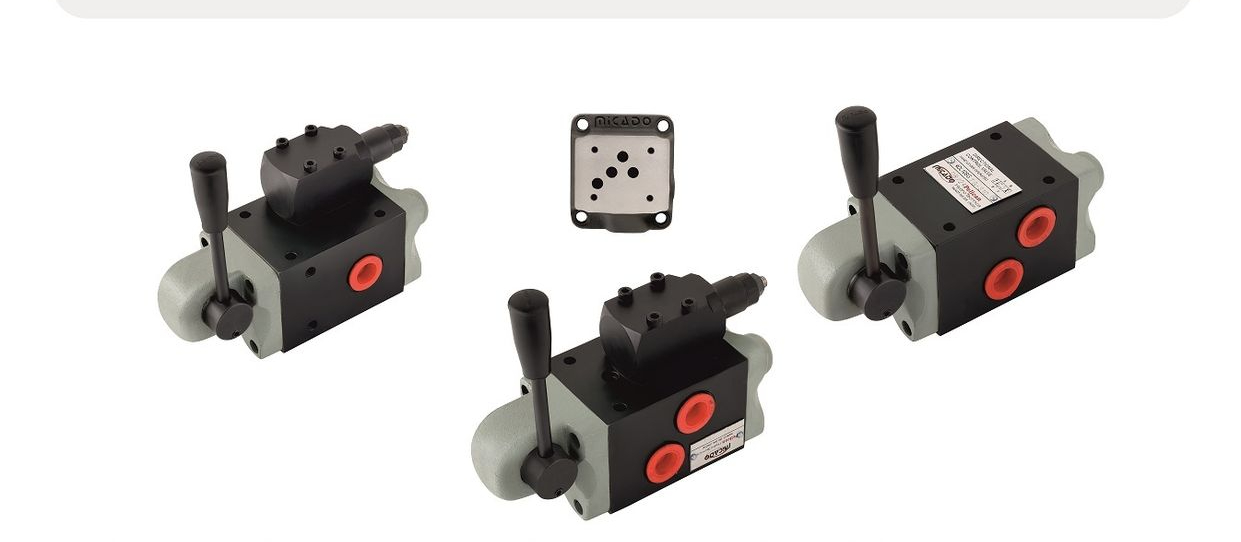

Directional Control Valves -4DL10
Description:
- The 4DL10 Direction Control Valve is a robust and versatile solution for controlling hydraulic fluid flow in industrial applications. Its completely encapsulated mechanism offers superior protection against dirt, ensuring reliable operation even in harsh environments. Featuring a five-chamber design, it effectively reduces dynamic forces, extending the valve's operational life.
Technical Features:
- Nominal Flow Rating: Optimized for efficient hydraulic performance.
- Maximum Pressure: 315 bar (4600 Psi)
- Mounting Styles: Available in Subplate and threaded body options.
- Design Variants: Spring-centered and Detent types.
- Rotatable Operating Head: 90° x 4 rotation for enhanced installation flexibility.
Applications:
- Industrial machinery
- Hydraulic presses
- Machine tools

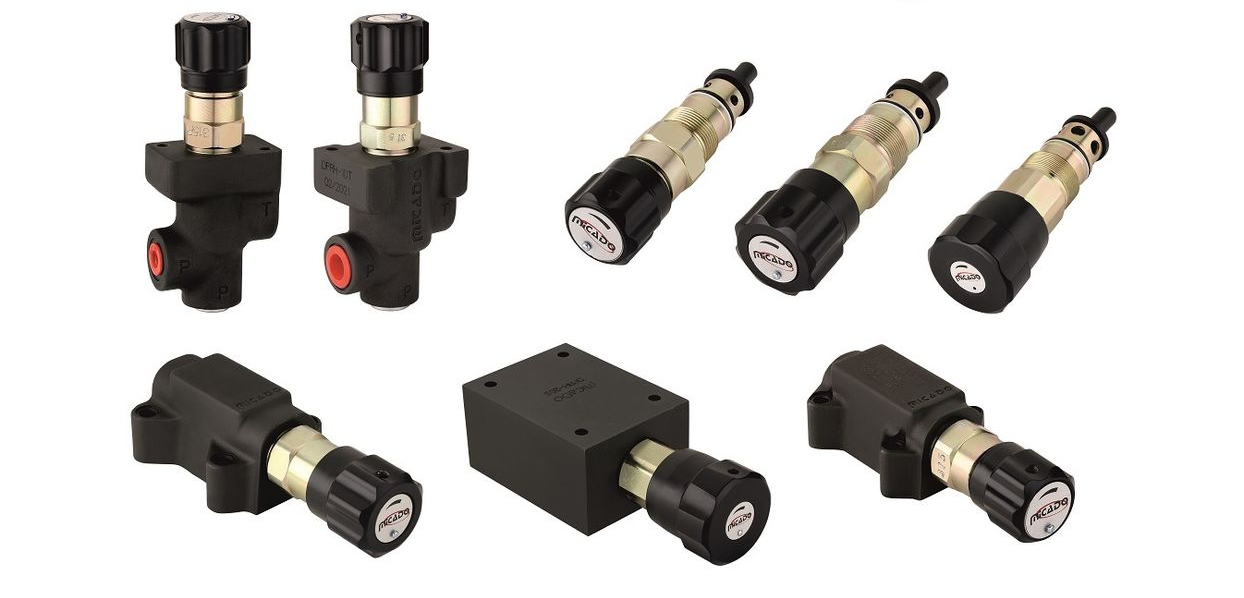

Pressure Relief Valves - DPRH
Description:
- The DPRH Pressure Relief Valves are precision-engineered to safeguard hydraulic systems against excessive pressure. These valves ensure reliable and safe operation across varying pressure conditions and are available in multiple sizes and configurations (06, 10, 20).
Technical Features:
- Direct Acting Valve: Enhances responsiveness and reliability.
- Flexible Mounting Styles: Threaded Cartridge, Threaded Port Body, Subplate Type
- Wide Pressure Range: Adjustable pressure ranges - up to 50, 100, 200, and 315.
Applications:
- Hydraulic system protection in industrial applications
- Mobile equipment
- Agricultural and construction machinery

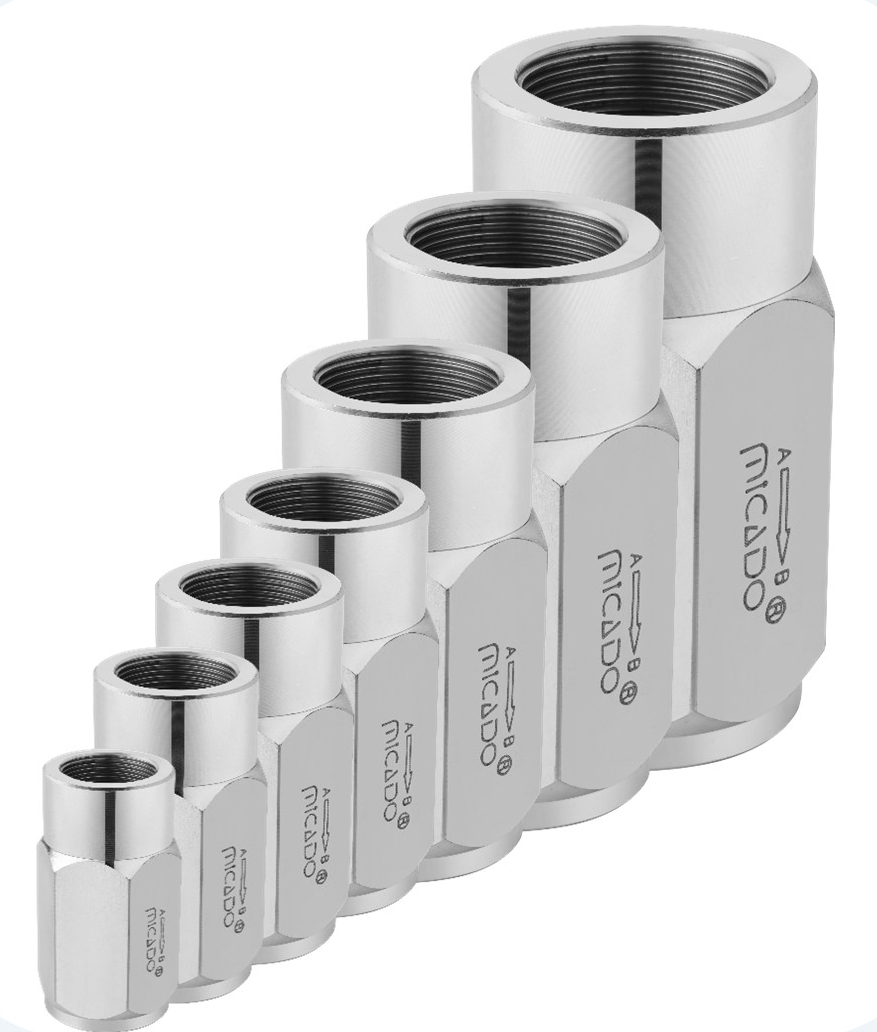

In-Line Check Valves (NRV)
Description:
- The C06 to C30 In-Line Check Valve (NRV) is a reliable solution for preventing reverse flow in hydraulic and fluid handling systems. These check valve models allow free flow from Port A to Port B while ensuring leak-free closure in the opposite direction, safeguarding system integrity. These valves are designed for ease of installation and maintenance.
Technical Features:
- Working pressure: 315 bar for Ports A and B.
- Sizes Available: From 1/4" BSP to 1-1/2" BSP
- Mounting Options: Threaded port or subplate mounting.
- Cracking pressure : 0, 0.5, 1.5, 3 and 5 bar.
- Construction: Seat type valve.
Applications:
- Fluid handling systems
- Hydraulic power units
- Oil and gas industry equipment

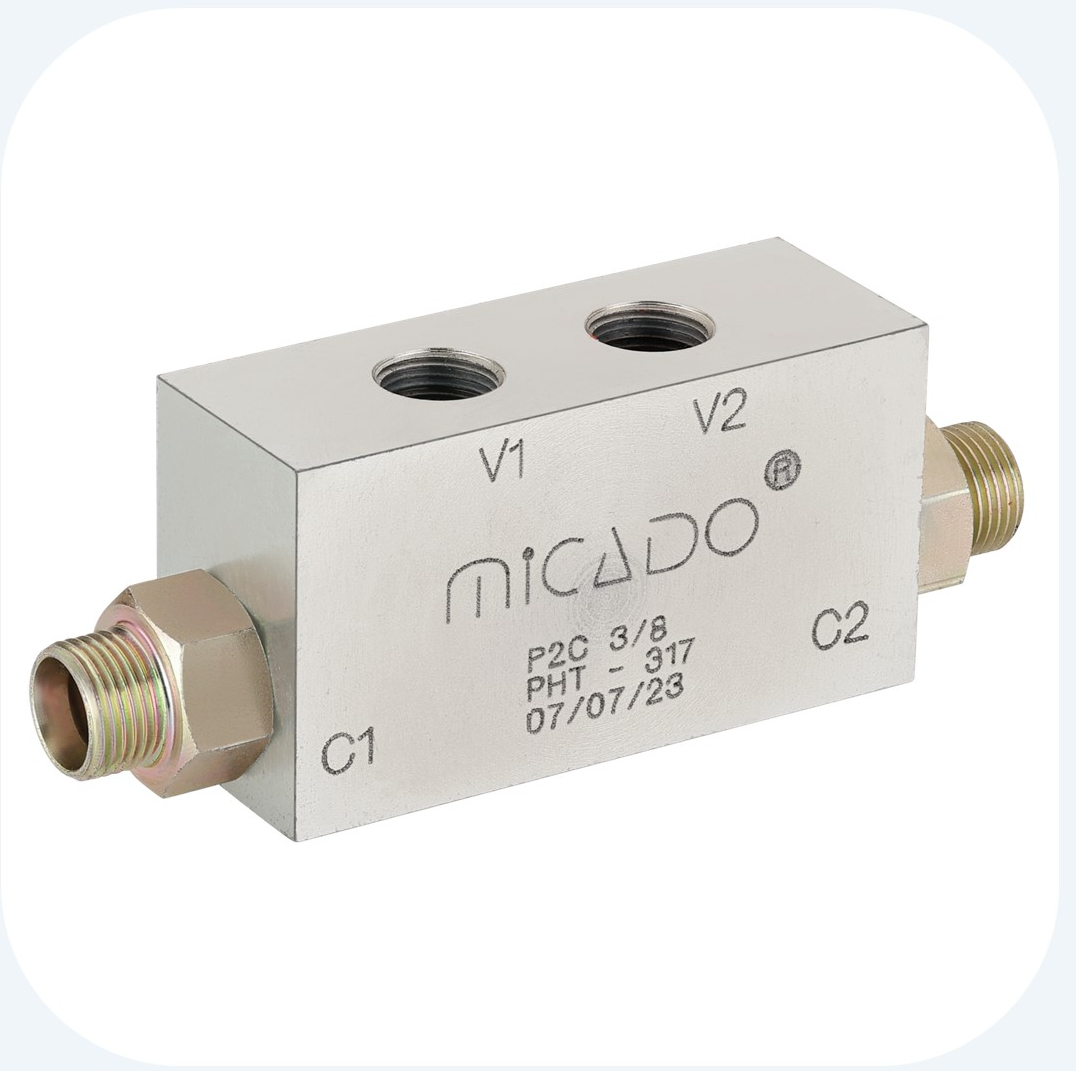

Pilot Check Valves
Description:
- The Pilot Operated Double Line Check Valve provides advanced control and safety in hydraulic systems. It is built to maintain pressure while allowing pilot operation, making it an excellent choice for complex hydraulic circuits.
- The check valves allow the free flow in only one direction. The opposite flow direction is managed by a crossed pilot signal.
Technical Features:
- Nominal flow: Up to 80
- Max. pressure: 350 bar (5100 psi)
- Available in: G1/4 - G3/8 - G1/2
Applications:
- Hydraulic systems requiring pilot control
- Industrial and mobile hydraulic equipment
- Aerospace and defense hydraulics

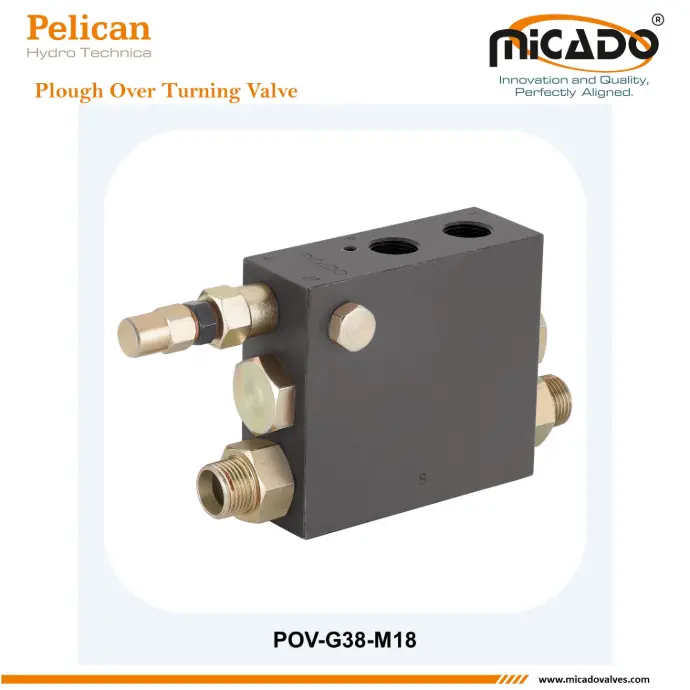

Plough OverTurning Valve
Description:
- The Plough Overturning Valve is designed for use in hydraulic cylinders to automatically reverse the motion of the hydraulic system that rotates the plough. Featuring a double pilot-operated check valve, it enhances security by allowing precise cylinder positioning and locking at any point. making it a reliable choice for agricultural applications.
Technical Features:
- Double Pilot-Operated Check Valve: Provides enhanced security and allows precise cylinder positioning and locking
- Pressure Setting: Operates with a change pressure of approximately 120 bar
- Thread Size: BSP threads for easy integration
- Sealing: Nitrile O-ring (NBR) for secure sealing
- Working Temperature: Ranges from -30 °C to +110 °C
- Heat Treatment: Applied to internal parts for increased durability
Applications:
- Agricultural ploughing systems
- Soil preparation machinery
- Tillage equipment
